Special electric motors and drives:

Electric motors without brake

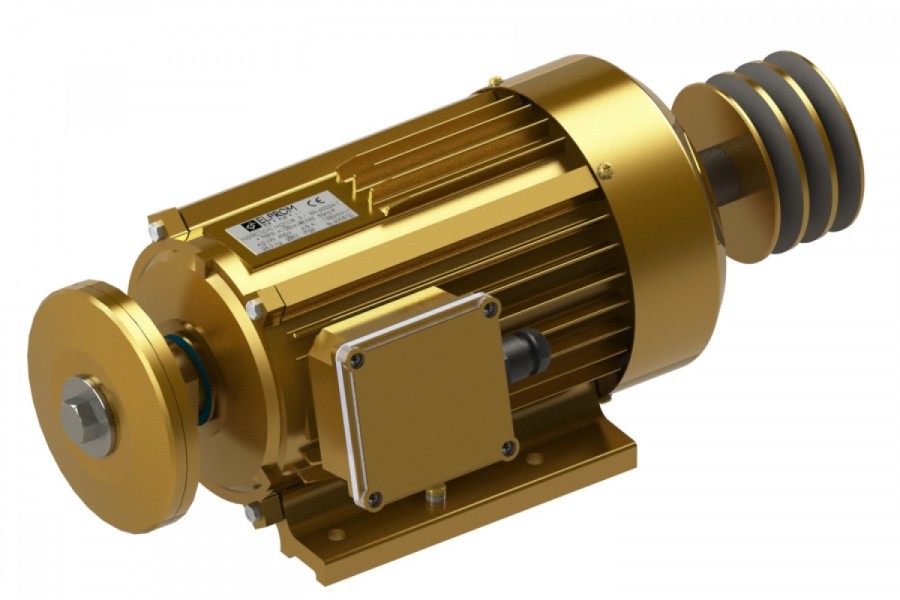

These AC motors are specially designed to work under heavy conditions of circular saws and wood cutting machinery. In the winding thermal switches are placed for 150 degrees Celsius. Motors are offered in both aluminum and cast-iron execution. Terminal box can be rotated through 90 degrees. It can be mounted to the sides (left or right) and on the top of the housing seen from driving shaft end or from the fan cover.



Degree of protection: IP 54

Duty cycle: S6 40%

Electric motors can be both single-phase and three phase. Both series have a high starting torque and great overloading ability.



Three-phase:

Technical_DATA_three-phase

Single phase:

Technical_DATA_single-phase



Also a special line of low axis saw arbor motors is available. Its series name is ATH.

You can find the information below

Technical_DATA_ATH
