Lifting motors

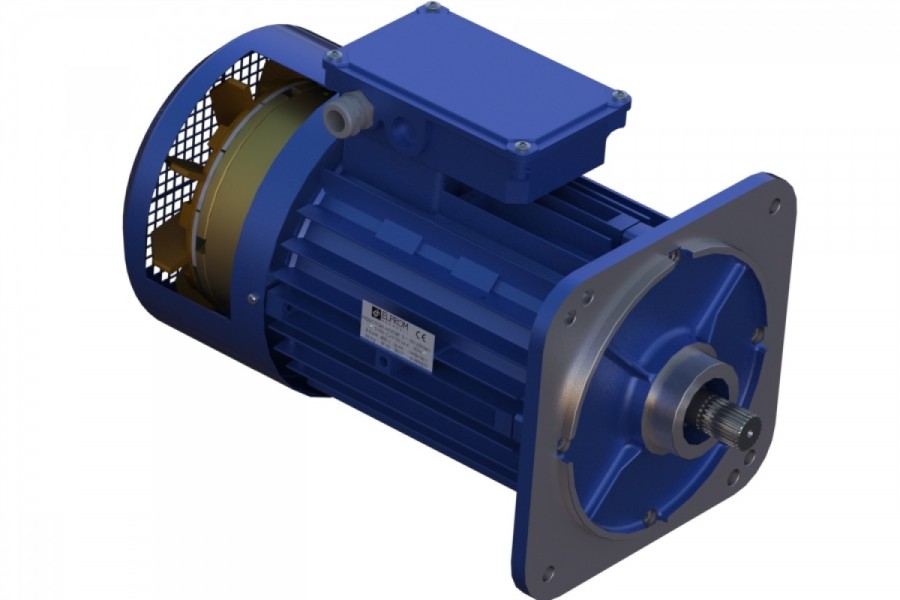

Lifting Motors Series CAT for driving main & auxiliary hoisting motions

  • Power 1.1~15kW
  • IEC frames 90, 100, 112, 132 and 160
  • Poles 2, 4, 6, 8/2 and 12/4
  • Voltage Δ/Y 230/400V 50/60Hz
  • Brake coil voltage (VDC) 0.45 UAC (other on request)
  • Braking torque 1.5 x rated torque or higher
  • Protection up to IP65
  • Insulation F, H
  • 40 deg C ambient rating
  • IC410, IC411, IC416 cooling
  • S4-40% (240 s/h), S4-20/40% (240 s/h)
  • Slow braking or precise, sudden load positioning



Catalog_CAT

Catalog_KX



The lifting three-phase electric motors are designed for application in the main motion of the rope and chain hoists. The brake of the cylindrical motors is electromagnetic, DC, and non-adjustable. Lifting motors are produced in different joining dimensions based on their application. Forced ventilation is also available if needed.



Main characteristics:

Power: 1,1kW up to 15kW depending on the rpms.

Frame size: 90, 100, 112, 132 and 160

Poles: 2, 4, 6, 8/12 and 12/4

Synchronous rotation speed min-1: 3000, 1500, 1000, 500, 750/3000, 500/1500

Basic supply voltage: for 127V up to 400V when connected Δ and 220V up to 690V when connected Y.

Frequency: 50Hz- 60Hz

Rectified voltage toward the brake: 0, 45 Un

Degree of protection: IP54, IP55, for the brake IP00. Higher protection is also available upon request.

Class of isolation: class F, class H

Ambient temperature: -25 up to +40 degrees Celsius. Special executions -40 up to +50 degrees Celsius are also available.

Duty cycle: single speed: S1, S4-40%/ 240h-1, two-speed motors: S4-20/40%/ 240h-1
